UPO22-10

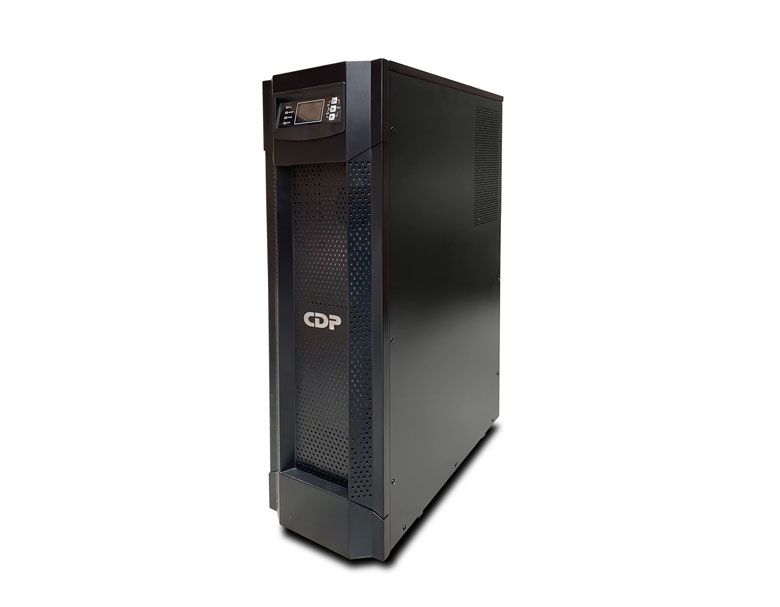

CDP UPO22-10 10KVA/10KW Power Factor 1.0, Online UPS , Tower from factor, Isolation Tranformer wide imput voltage range with zero voltage fluctuation at the output, autosensing 50/60 hz, remote automatic smart shutdown software, SNMP optional, Multifunction LCD, CE Certified. 220/240 to 208 Vac

Where to Buy Services CAS Distributors Ask A Question

Quick Specs

Capacity	10KVA/9KW
Input Voltage Range	110-300vca
Certifications	TUV,UL,Rohs.

Feature	Specification
Capacity	10KVA/9KW
Battery Type	Lead Acid
Power Factor	0.9
Waveform	sinewave
Protection	Overload, Short circuit, Autorun, surge protect, EMI, RFI.
AC / DC efficiency	0%
Input Voltage Range	110-300vca
Recharge Time to 90%	4hrs
Input connector	Hardwire
Backup time at full load	5min
Transfer time	0 ms
Output Type / Number	Hard wire
Voltage	208 Vac
Design technology	Online Double Convertion
Phase	Split-Phase
Current Crest	3:1
Harmonic distortion	</=3THD
Protection from voltage spikes	660 Joules
Frequency	50/60Hz (auto-sensing)
Interface (Ports of communication)	USB / Serial
Accessories	Cable USB/Manual/Software
Type / Quantity of batteries	20 pcs 12vcd 9 Ah
Cabinet with batteries (LxHxD)mm	(250x830x610)mm
Software	Viewpower
Certifications	TUV,UL,Rohs.
Output Voltage regulation	208 +/- 1%
Indicators Type	LCD
Backup time at half load	10min
Capacity Range	10 -9KW
Wh Capacity	2160
UPS Topology	Online Double Convertion
VA Capacity	10KVA/10KW
Battery Technology	Sealed lead acid
Form Factor	tower
