UPO22-15RTPM

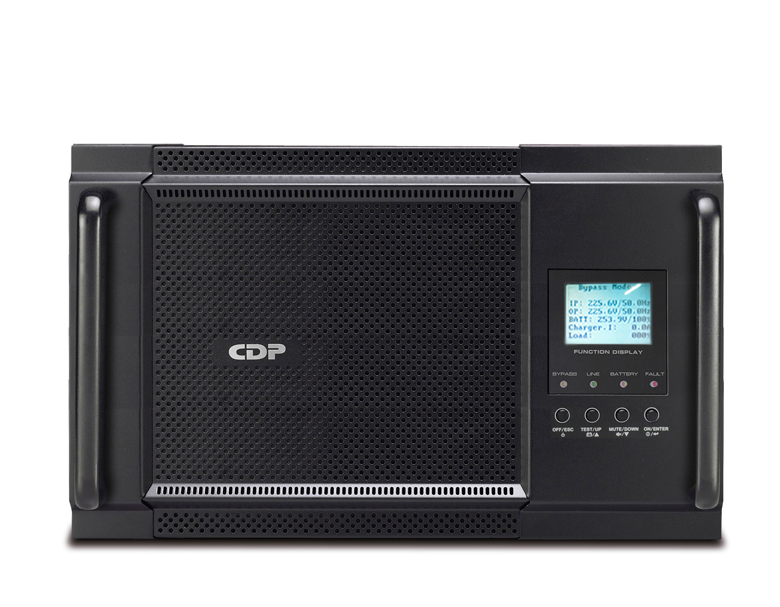

CDP UPO22-15RTPM 15KVA/12KW Power Factor 0.8, Online UPS 3U 19" Rack or Tower from factor, Power Module, wide imput voltage range with zero voltage fluctuation at the output, autosensing 50/60 hz, remote automatic smart shutdown software, SNMP optional, 220 Vac

Where to Buy Services CAS Distributors Ask A Question

Quick Specs

Capacity	20KVA/12KW
Input Voltage Range	110-300vca
Certifications	TUV,Rohs.

Feature	Specification
Capacity	20KVA/12KW
Battery Type	Lead Acid
Power Factor	0.8
Waveform	sinewave
Protection	Overload, Short circuit, Autorun, surge protect, EMI, RFI.
AC / DC efficiency	90%
Input Voltage Range	110-300vca
Recharge Time to 90%	4 Hrs
Input connector	Hardwire
Transfer time	0 ms
Output Type / Number	Hard wire
Voltage	208 Vac
Design technology	Online Double Convertion
Phase	Split-Phase
Current Crest	3:1
Harmonic distortion	</=3THD
Protection from voltage spikes	660 Joules
Frequency	50/60Hz (auto-sensing)
Interface (Ports of communication)	USB / Serial
Accessories	Cable USB/Manual/Software
Cabinet with batteries (LxHxD)mm	(440x133x640)mm
Software	Viewpower
Certifications	TUV,Rohs.
Output Voltage regulation	208 +/- 1%
Indicators Type	LCD
Capacity Range	10 -12KW
UPS Topology	Online Double Convertion
VA Capacity	20KVA/12KW
Battery Technology	Sealed lead acid
