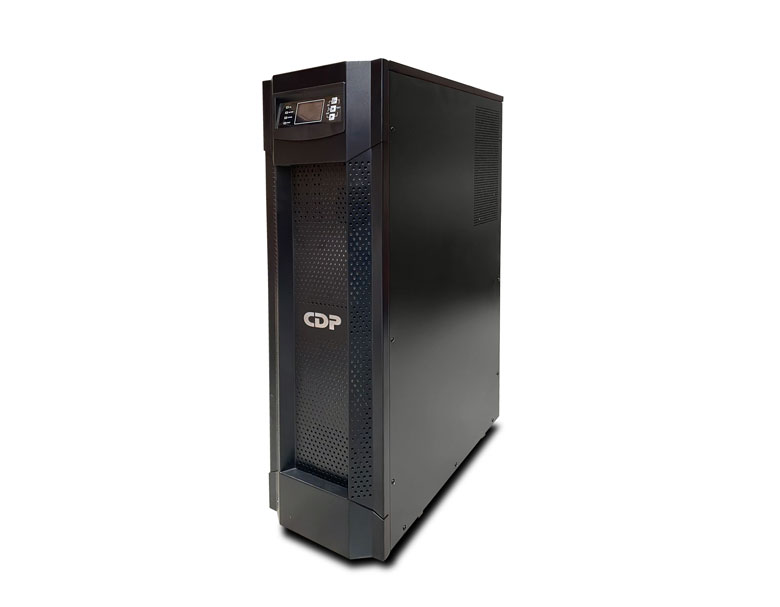

UPO22-10LS

CDP UPO22-10LS 10KVA/10KW Power Factor 1, true Online double convertion UPS Tower Isolation transformer, wide imput voltage range with zero voltage fluctuation at the output, autosensing 50/60 hz, remote automatic smart shutdown software, SNMP optional, LCD multifunction, CE, 220/240 to 208 Vac

Where to Buy Services CAS Distributors Ask A Question

Quick Specs

Capacity	10KVA/9KW
Input Voltage Range	110-300vca
Certifications	TUV,UL,Rohs.

Feature	Specification
Capacity	10KVA/9KW
Battery Type	Lead Acid
Voltage regulation	208 +/- 1%
Power Factor	0.9
Waveform	sinewave
LED Indicators	LCD
Protection	Overload, Short circuit, Autorun, surge protect
Input Voltage Range	110-300vca
Recharge Time to 90%	4hrs
Backup Time	10min
Input connector	Hardwire
Backup time at full load	5min
Transfer time	0 ms
Output Type / Number	Hard wire
Voltage	208 Vac
Design technology	Online Double Convertion
Phase	Split-Phase
Current Crest	3:1
Harmonic distortion	</=3THD
Frequency	50/60Hz (auto-sensing)
Accessories	Cable USB/Manual/Software
Type / Quantity of batteries	20 pcs 12vcd 7 Ah
Cabinet with batteries (LxHxD)mm	(250x830x610)mm
Certifications	TUV,UL,Rohs.
