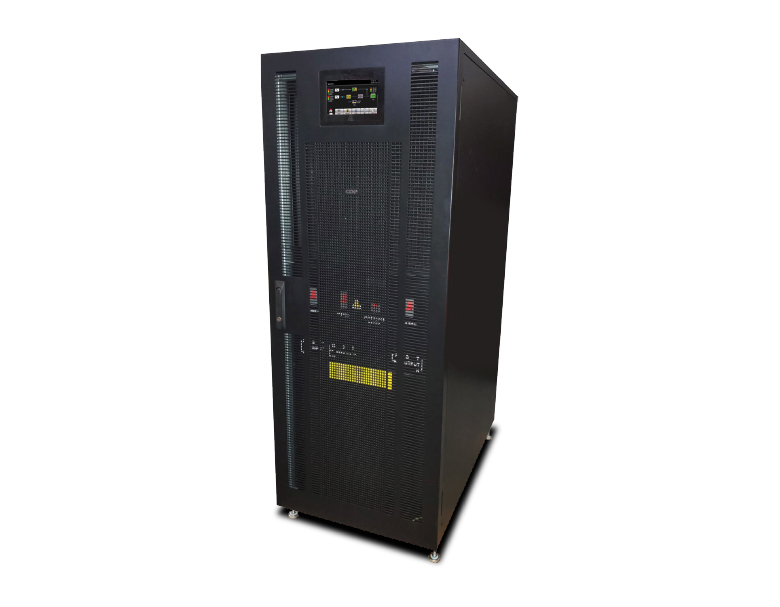

UPO33-60HFAX

CDP UPO33-60HFAX 60KVA/60KW Power FActor 1.0, Three Phase, Double Convertion Online UPS 3 Phase High Frequency, wide imput voltage range with zero voltage fluctuation at the output, autosensing 50/60 hz, remote automatic smart shutdown software, SNMP optional, Multifunction LCD, UL Certified. 208/208 Vac

Where to Buy Services CAS Distributors Ask A Question

Quick Specs

Capacity	60KVA/60KW
Input Voltage Range	173 to 253
Certifications	ISO9001, ISO14001, CIDET, CE, ENERGY STAR, UL1778 Y FCC

Feature	Specification
Capacity	60KVA/60KW
Battery Type	Lead Acid
Power Factor	1.0
Waveform	sinewave
Protection	Overload, Discharge
AC / DC efficiency	0.93
Input Voltage Range	173 to 253
Recharge Time to 90%	4 hours
Input connector	Hard wire
Backup time at full load	7min
Transfer time	0 ms
Output Type / Number	Hard wire
Voltage	220Vca
Design technology	Online Double Convertion
Phase	Three-Phase
Current Crest	3:1
Harmonic distortion	</=2% THD (cargas lineales) </=4% THD (cargas no lineales)
Frequency	50/60Hz Autosensing
Interface (Ports of communication)	USB and SERIAL
Software	Software
Certifications	ISO9001, ISO14001, CIDET, CE, ENERGY STAR, UL1778 Y FCC
Output Voltage regulation	+/-1% en modo bateria
Indicators Type	LCD
Backup time at half load	12 min
Capacity Range	10 -60KW
UPS Topology	Online Double Convertion
VA Capacity	60KVA/60KW
Battery Technology	Sealed lead acid
