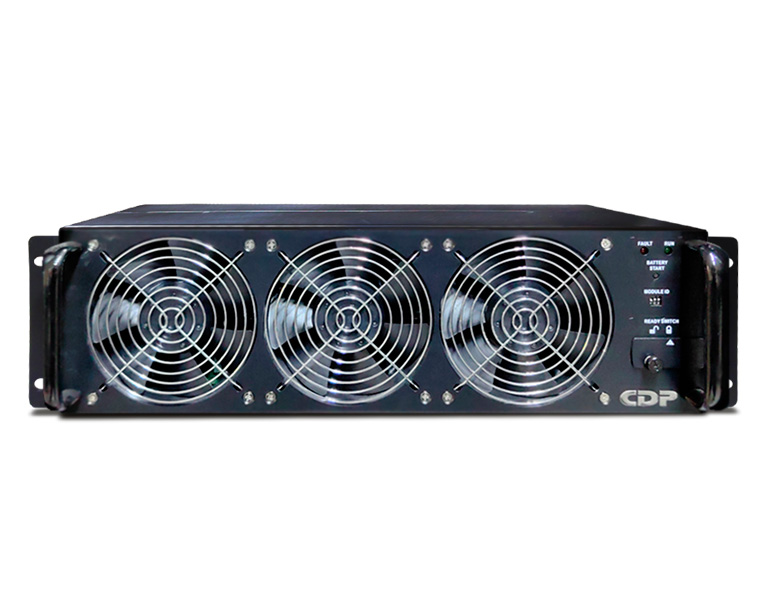

UPO33-20PMAX

CDP UPO33-20PMAX 20KVA/20KW Three Phase, Double Convertion Online UPS 3 Phase High Frequency Power Module, Power Factor 1.0, wide imput voltage range with zero voltage fluctuation at the output, autosensing 50/60 hz, remote automatic smart shutdown software, SNMP optional, Multifunction LCD, UL Certified. 208 Vac

Ask A Question

Quick Specs

Capacity	20KVA/20KW
Input Voltage Range	156 to 253vca
Certifications	ISO9001, ISO14001, CIDET, CE, ENERGY STAR, UL1778 Y FCC

Feature	Specification
Capacity	20KVA/20KW
Battery Type	Lead Acid
Power Factor	1.0
Waveform	sinewave
Protection	Overload, Discharge
AC / DC efficiency	0.96
Input Voltage Range	156 to 253vca
Recharge Time to 90%	4 hours
Input connector	NA
Backup time at full load	NA
Transfer time	0 ms
Output Type / Number	NA
Voltage	208Vca
Design technology	Online Double Convertion
Phase	Three-Phase
Harmonic distortion	</=2% THD (cargas lineales) </=4% THD (cargas no lineales)
Frequency	50/60Hz Autosensing
Interface (Ports of communication)	USB and SERIAL
Type / Quantity of batteries	NA
Software	Software
Certifications	ISO9001, ISO14001, CIDET, CE, ENERGY STAR, UL1778 Y FCC
Indicators Type	LCD
Backup time at half load	NA
Capacity Range	10 -20KW
UPS Topology	Online Double Convertion
VA Capacity	20KVA/20KW
Battery Technology	Sealed lead acid

Data Not Found
