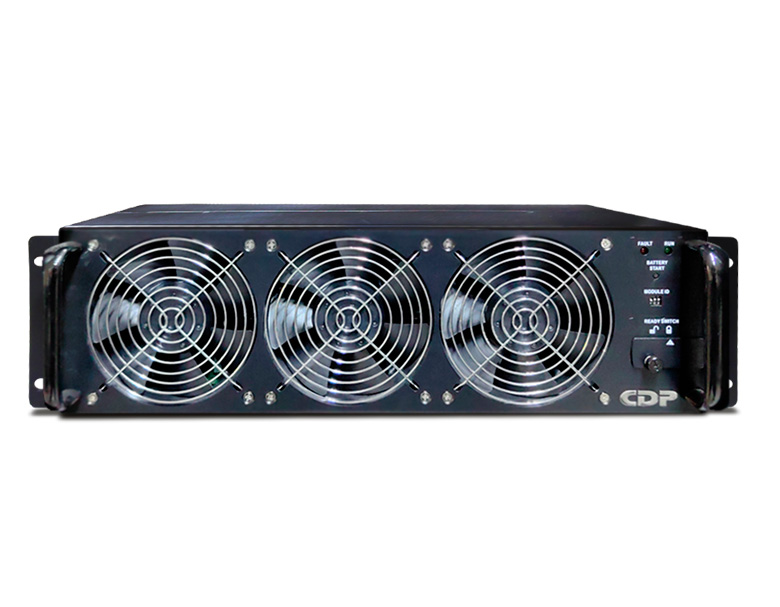

CDP UPO33-20PMHM 20Kva@208 Vac, 30Kva@380Vac Online UPS 3PH HF Power Module PF 0,9, 208 or 380 Vac

Product Model: UPO33-20PMHM

Product Info
Specification

CDP UPO33-20PMHM 20Kva@208 Vac, 30Kva@380Vac Power Factor 0.9, high-performance Online Modular UPS, scalable 3 phase UPS high Frequency Power Module, wide imput voltage range with zero voltage fluctuation at the output, autosensing 50/60 hz, remote automatic smart shutdown software, SNMP optional, 208 or 380 Vac.

Ask A Question

Quick Specs

Capacity	20Kva@208 Vac, 30Kva@380Vac
Capacity	20Kva@208 Vac, 30Kva@380Vac
Input Voltage Range	(-40%+25%)
Input Voltage Range	(-40%+25%)
Certifications	ISO9001, ISO14001, CIDET, CE Y NOM
Certifications	ISO9001, ISO14001, CIDET, CE Y NOM

Feature	Specification
Capacity	20Kva@208 Vac, 30Kva@380Vac
Capacity	20Kva@208 Vac, 30Kva@380Vac
Battery Type	Lead Acid
Battery Type	Lead Acid
Power Factor	0.9
Power Factor	0.9
Waveform	sinewave
Waveform	sinewave
Protection	Overload, Discharge
Protection	Overload, Discharge
AC / DC efficiency	0.95
AC / DC efficiency	0.95
Input Voltage Range	(-40%+25%)
Input Voltage Range	(-40%+25%)
Recharge Time to 90%	4 hours
Recharge Time to 90%	4 hours
Input connector	NA
Input connector	NA
Backup time at full load	NA
Backup time at full load	NA
Transfer time	0 ms
Transfer time	0 ms
Output Type / Number	NA
Output Type / Number	NA
Voltage	208 or 380 vca
Design technology	Online Double Convertion
Design technology	Online Double Convertion
Phase	Three-Phase
Phase	Three-Phase
Current Crest	3:1
Current Crest	3:1
Harmonic distortion	<1% linear load, <6% non linear loads
Harmonic distortion	<1% linear load, <6% non linear loads
Frequency	50/60Hz Autosensing
Frequency	50/60Hz Autosensing
Interface (Ports of communication)	USB, Serial and modbus RS485
Interface (Ports of communication)	USB, Serial and modbus RS485
Type / Quantity of batteries	NA
Type / Quantity of batteries	NA
Software	Software
Software	Software
Certifications	ISO9001, ISO14001, CIDET, CE Y NOM
Certifications	ISO9001, ISO14001, CIDET, CE Y NOM
Output Voltage regulation	+/- 1.5%
Output Voltage regulation	+/- 1.5%
Backup time at half load	NA
Backup time at half load	NA
Capacity Range	10 -20Kva@208 Vac, 30Kva@380Vac
Capacity Range	10 -20Kva@208 Vac, 30Kva@380Vac
UPS Topology	Online Double Convertion
VA Capacity	20Kva@208VAc, 30Kva@380Vac
Battery Technology	Sealed lead acid
