UPRS-2008

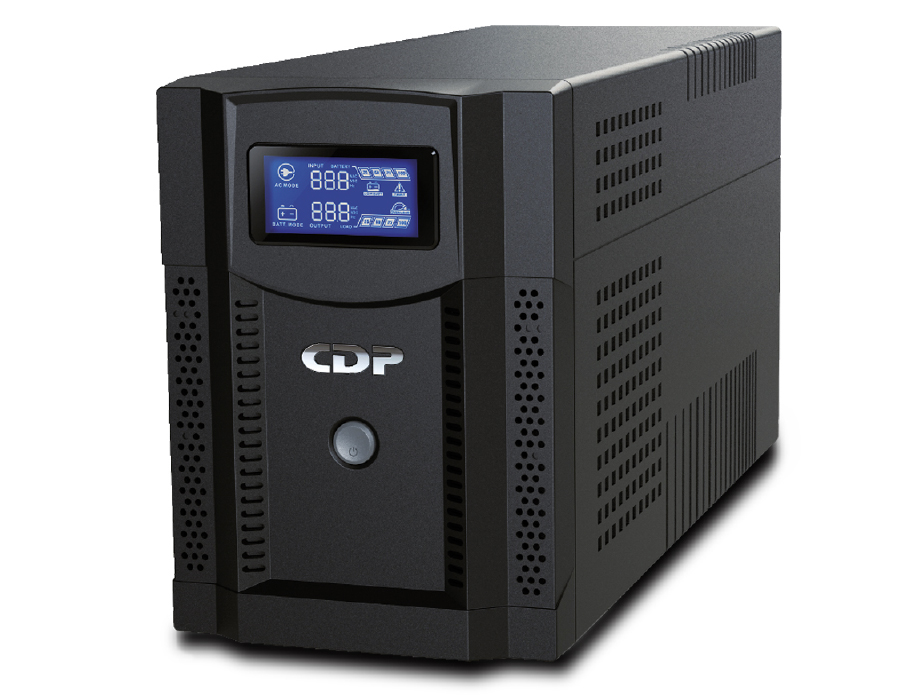

CDP UPRS-2008 2000VA/1400W Sine Wave Battery Backup Uninterruptible Power Supply (UPS), Automatic Voltage Regulation (AVR) corrects minor voltage fluctuations and preserve safe power conditions without using battery, 8 Outlets (Nema 5-15R): 8 battery backup & surge protected outlets, Multifunction LCD Panel, Ethernet Dataline surge protection (rj45 10/100 ports), remote automatic smart shutdown software, 120 Vac

Where to Buy Services CAS Distributors Ask A Question

Quick Specs

Capacity	2000VA/1400W
Input Voltage Range	85 - 145 VCA 120 VCA -29% +21%
Certifications	NOM

Feature	Specification
Capacity	2000VA/1400W
Battery Type	Lead Acid
Power Factor	0.7
Waveform	PWM
Protection	Overload, TVSS, 15A thermomagnetic minibreaker resettable
Input Voltage Range	85 - 145 VCA 120 VCA -29% +21%
Recharge Time to 90%	4 Hrs
Input connector	Nema 5-15P
Backup time at full load	4 Min at full load
Transfer time	2-4ms

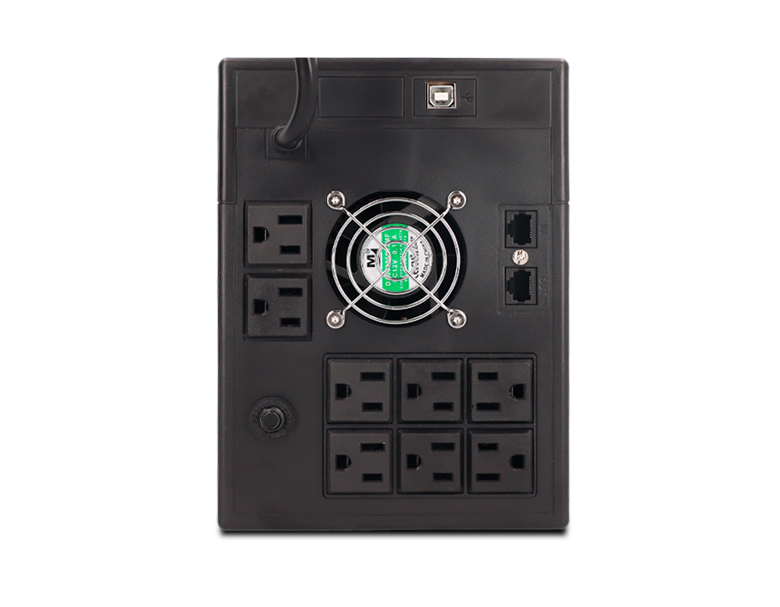

Output Type / Number	8 Outlets (Nema 5-15R): 8 battery backup & surge protected outlets
Voltage	120 Vac
Design technology	Line Interactive
Phase	Single Phase
Current Crest	3:1
Harmonic distortion	<3%
Frequency	50/60Hz (auto-sensing)
Type / Quantity of batteries	2 Pcs 12 Vdc 9 AH
Software	UPSilon
Certifications	NOM
Rj45 Protection	Ethernet Dataline surge protection (rj45 10/100 ports)
Output Voltage regulation	120 VCA +/- 10%
Indicators Type	LCD
Backup time at half load	8 Min at half load
Capacity Range	10 -1400W
Wh Capacity	216
UPS Topology	Line Interactive
VA Capacity	2000VA/1400W
Battery Technology	Sealed lead acid
Form Factor	tower

WHAT ARE YOU LOOKING FOR?

UPRS-2008

Catalogo UPRS 2008 SPA.pdf

Catalog UPRS 2008 ENG.pdf

Manual Usuario UPRS1508 2008 SPA.pdf

User Manual UPRS 1808 2008 ENG.pdf
