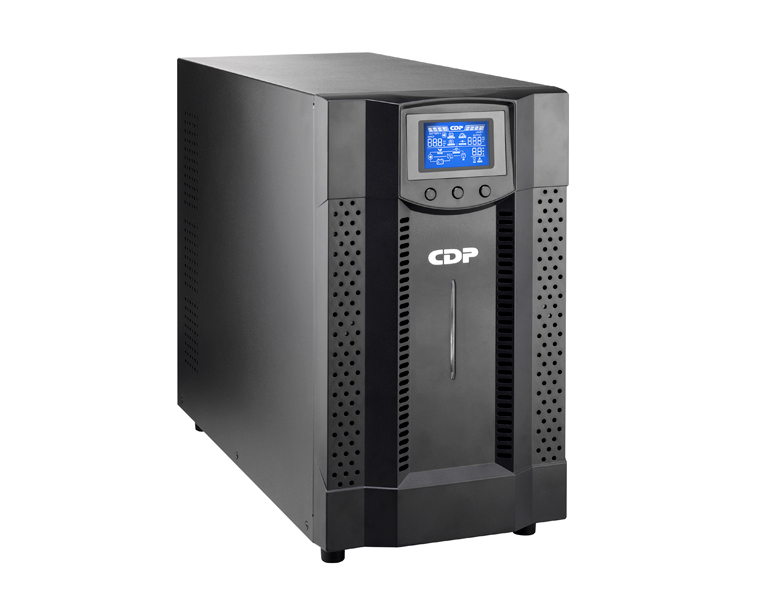

UPO11-2AX

CDP UPO11-2AX 2000VA/2000W Power Factor 1.0, Single Phase Double Convertion Online UPS, Tower from factor, wide imput voltage range with zero voltage fluctuation at the output, autosensing 50/60 hz, remote automatic smart shutdown software, SNMP optional, Multifunction LCD, UL, FCC, CE Certified. 120 Vac

Ask A Question

Quick Specs

Capacity	2000VA/2000W
Input Voltage Range	55-150 Vac
Certifications	TUV,NOM,UL,Rohs.

Feature	Specification
Capacity	2000VA/2000W
Battery Type	Lead Acid
Power Factor	1.0
Waveform	sinewave
Protection	Overload, Short circuit, Autorun, surge protect, EMI, RFI.
AC / DC efficiency	90%
Input Voltage Range	55-150 Vac
Recharge Time to 90%	4hrs
Input connector	Nema 5-20P
Backup time at full load	7min
Transfer time	0 ms
Output Type / Number	8 Outlets Nema 5-15R
Voltage	120 Vac
Design technology	Online Double Convertion
Phase	Single Phase
Current Crest	3:1
Harmonic distortion	</=3THD
Protection from voltage spikes	844 Joules
Frequency	50/60Hz (auto-sensing)
Interface (Ports of communication)	USB / Serial
Accessories	Cable USB/Manual/Software
Type / Quantity of batteries	6 pcs 12vcd 7 Ah
Cabinet with batteries (LxHxD)mm	(190x340x420)mm
Software	Viewpower
Certifications	TUV,NOM,UL,Rohs.
Power Cord length	1.50mt
Output Voltage regulation	120 Vac +/- 1%
Indicators Type	LCD
Backup time at half load	15min
Capacity Range	10 -2000W
Wh Capacity	504
UPS Topology	Online Double Convertion
VA Capacity	2000VA/2000W
Battery Technology	Sealed lead acid
Form Factor	tower
